Fraunhofer Institute for Building Physics
Tensile strength, e-modulus
Hygrothermics
| Measurement | Force and elongation |
| Standards | DIN EN ISO 8339 (sealing material), DIN EN 12311 (elastomer film), DIN 53457 (plastics), EN 1607 (insulation materials) |
| Measurement object | Sealing materials, elastomer films, fibrous insulation materials |
Technical data
| Sample size | Variable, depending on material |

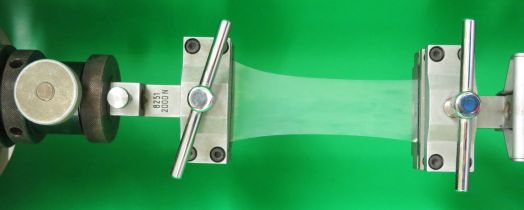

| Apparatus | Zwick universal testing machine |
| 2 measuring ranges: up to 2 kN and up to 20 kN |
Special features
| Accredited by DAkkS D-PL-11140-11-02 |
The laboratory has a flexible accreditation according to DIN EN ISO/IEC 17025 Test laboratory moisture, mortar, radiation, emmissions |
| Test reports can be issued |
More information
- The stress-strain curve of different materials can be determined.
- Durabitiy and lifetime test of mechanical material properties after outdoor or artificial weathering
