Noise of water installations on light walls
Acoustics
| Measurement | Noise of water installations |
| Standards | DIN EN ISO 10052, DIN 4109, SIA 181, VDI 4100 |

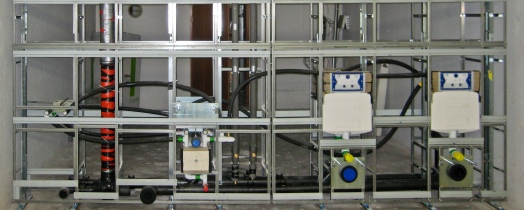

| Measurement object | Lightweight installation walls, front-wall and in-wall installations |
Technical data
| Floor area (2 rooms) | 20 m² and 20 m² |
| Room volume (2 rooms) | 70 m³ and 61 m³ |
| Entrance doors (H × W) | 2.00 × 0.83 m and 1.99 × 0.84 m |
| Thickness of separating floor | 190 mm (reinforced concrete) |
Special feature
| Controllable water supply (water pressure and flow rate) | In both rooms (stacked bathrooms) |
More information
- Lightweight installation walls are separating each of the stacked rooms.
- Test results can be used to prove compliance with requirements according to the German standard DIN 4109 and to the guideline VDI 4100.
- Test results can be used for classification according to the Swiss standard SIA 181 (noise sensitivity levels).
